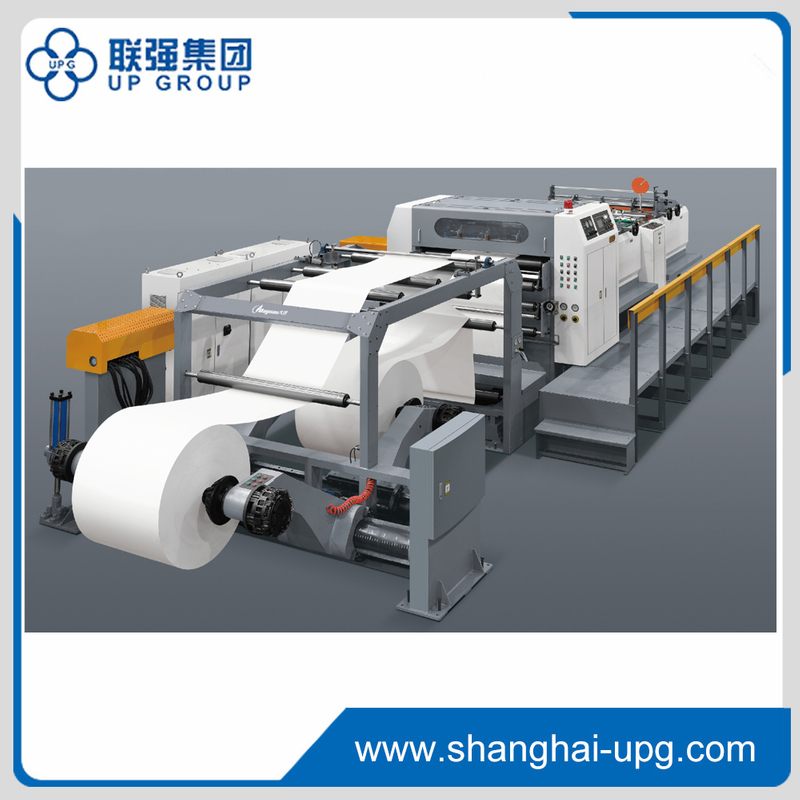

SM Series Servo Precision Double-Helix High Speed Sheet Cutter Machine

SM-1100/1400/1700/1900 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what's more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.
Availability:
SM Series Servo Precision Double-Helix High Speed Sheet Cutter Machine
  • SM-1100/1400/1700/1900

  • UPG

SM-1100/1400/1700/1900 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers
to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what's more, with the feature of high cutting precision makes sure paper
after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.

Model SM-1100/1400/1700/1900
Model of cutting paper Double rotary sheeter
Thickness of cutting paper(GSM) 60-1000
Cutting length range(mm) 450-1450 (SM-1100) / 450-1600(SM-1400/1700/1900)
Cutting precision(mm) Cutting length1000 : +/-0.2mm
Cutting length1000 : +/-0.1%
Max. cutting meter speed(m/min) 300
Max. scroll diameter(mm) 1500 (SM-1100)/1800 (SM-1400/1700/1900)
Max. paper cutting width(mm) 1100/1400/1700/1900
Max. paper piling height(mm) 1300 (SM-1100)/1500 (SM-1400/1700/1900)
The request for air compressor(Mpa) 0.8
Power consumption(V) 380/220 x 50Hz
Gross weight(kgs) 12000/16000/18000/20000
