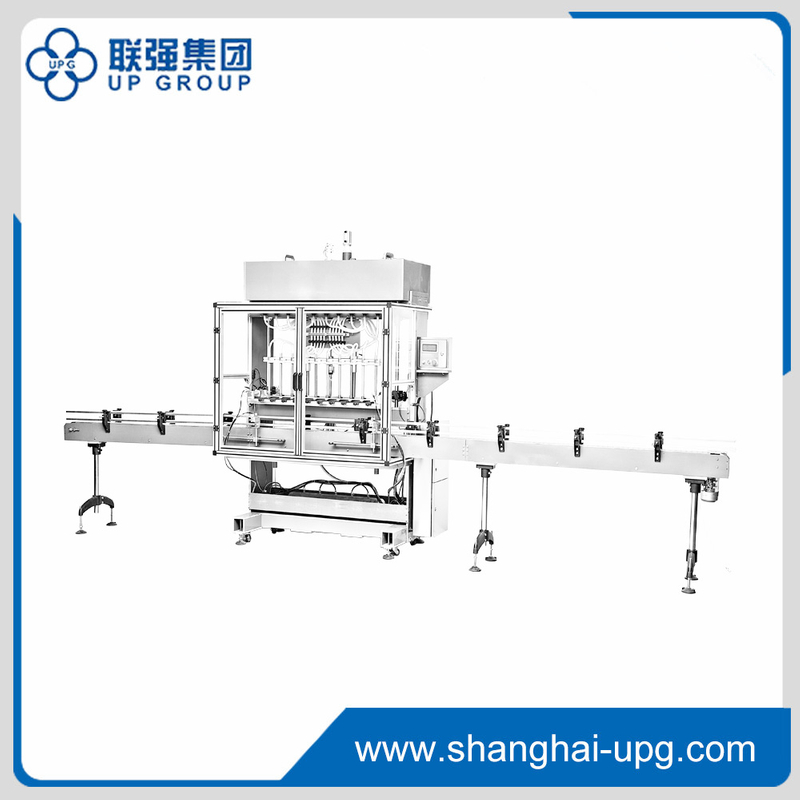

LQ-AGF Gravity Filling Machine

Automatic gravity filling machines are ideal machines to fill water-thick or rich foaming products for the cosmetic, detergent and food industries.
Availability:
Quantity:

PDF Export

LQ-AGF Gravity Filling Machine
LQ-AGF Gravity Filling Machine
  • LQ-AGF

The filling volume is regulated by controlling the amount of time the product flows at a constant rate through a standard sized tube into the container.

We can also equip the machine with 6, 8, 10 or other numbers of nozzles according to your requirement.

Model LQ-AGF-6D
(Direct Nozzles)
LQ-AGF-6L
(No-drip nozzles)
LQ-AGF-6H
(No-drip&diving nozzles)
Filling Volume 5200ml 3001000ml 3001000ml
Air Consumption Depend on the speed
Air Pressure 6kg/cm2
Filling Accuracy Within ±1%
Voltage 220V
Weight 120 kg 160 kg 160 kg
Overall Dimensions L1150*W800*H2250


(The speed depends on the bottle volume, material and the quantity of filling heads)
