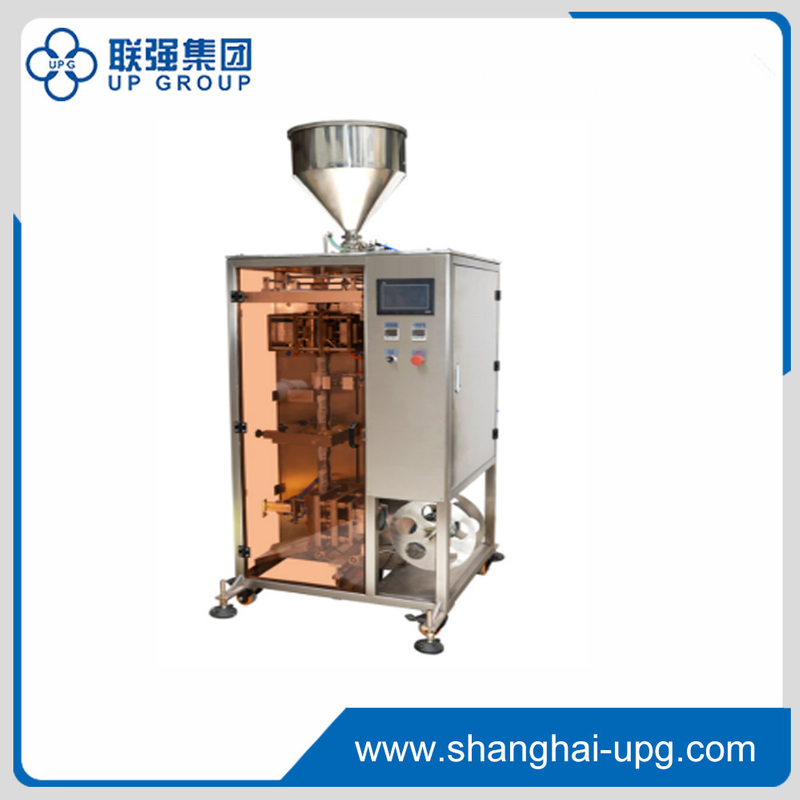

LQ-Y Irregular Shaped Bag Packaging Machine

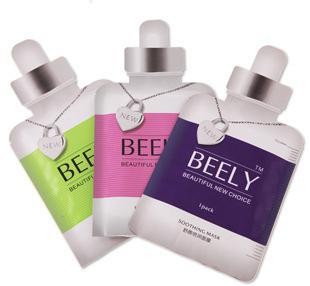

This machine is used to package liquid like shampoo in irregular bag.

PDF Export

  • LQ-Y

1. It can complete automatically feed, measure, bag form, fill, seal, cut, print date code.
2. Display screen is simple and direct viewing in operation, daily production output and self-diagnostic machine error will be viewed directly from the screen.
3. Driven type: pneumatic, it make the operation easy than mechanical driven type, and the packing samples more beautiful than common.
4. Fine packaging performance, low noise, clear sealing texture and strong sealing performance.
5. High sensitive fiber optic photo sensor can automatically trace color mark accurately.

Mold LQ-Y30 LQ-Y100
Capacity 20-50bags/min
Filling range 1-20ml 1-50ml
Bag size Length: 50-140mm
Width: 25-75mm
Length: 50-180mm
Width: 50-150mm
Package material Laminated film
Total power 220V, 50Hz, 2.0 KW 220V, 50Hz, 2.5KW
Air-consumption 0.35m³/min, 0.6-0.8Mpa 0.4m³/min, 0.6-0.8Mpa
Total weight 320KG 450KG
Dimension 1930*750*1800mm 1020*880*2165mm
