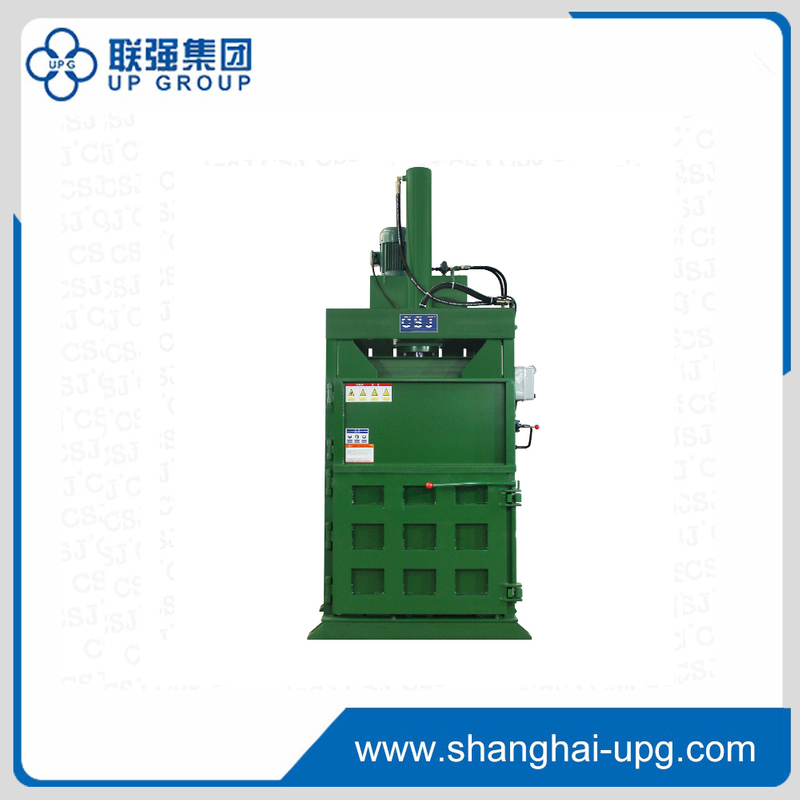

LQ-C
UPG
Easy-to-operate models, five pressure models to choose, a wide range of applications, usually suitable for various conventional recycling materials, cost-effective, and used in industries such as small and medium-sized enterprises and waste recycling stations.
* This machine adopts hydraulic transmission and has an independent pressure plate balance device.
* It adopts manual valve working mode, which is convenient and simple to operate.
* Independent feed opening and automatic bale-out device, safe and reliable.
* This machine is of high quality and low price, economical machine.
Easy-to-operate models, five pressure models to choose, a wide range of applications, usually suitable for various conventional recycling materials, cost-effective, and used in industries such as small and medium-sized enterprises and waste recycling stations.
* This machine adopts hydraulic transmission and has an independent pressure plate balance device.
* It adopts manual valve working mode, which is convenient and simple to operate.
* Independent feed opening and automatic bale-out device, safe and reliable.
* This machine is of high quality and low price, economical machine.
Model | LQ-C15A | LQ-C20A | LQ-C30A | LQ-C40A | LQ-C50A |
Compression force(Ton) | 15 | 20 | 30 | 40 | 50 |
Bale size(L*W*H)mm | 800*600*(400-800) | 1000*700*(400-800) | 1100*700*(450-900) | 1100*700*(450-900) | 1100*700*(450-900) |
Feed opening size(L*H)mm | 800*450 | 1000*500 | 1100*500 | 1100*500 | 1100*500 |
Capacity(Bales/Hr) | 4-7 | 4-7 | 4-7 | 4-7 | 4-6 |
Bale weight(Kg) | 50-120 | 90-160 | 120-200 | 200-250 | 250-350 |
Voltage(Customizable)(V/Hz) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Power(Kw/Hp) | 3Kw/4Hp | 4Kw/5.5Hp | 5.5Kw/7.5Hp | 5.5Kw/7.5Hp | 7.5Kw/10Hp |
Machine size(L*W*H)mm | 1070*850*2850 | 1400*950*3000 | 1550*950*3050 | 1550*1100*3250 | 1550*1100*3250 |
Machine weight(Kg) | 800 | 850 | 1340 | 1500 | 1760 |
Model | LQ-C15A | LQ-C20A | LQ-C30A | LQ-C40A | LQ-C50A |
Compression force(Ton) | 15 | 20 | 30 | 40 | 50 |
Bale size(L*W*H)mm | 800*600*(400-800) | 1000*700*(400-800) | 1100*700*(450-900) | 1100*700*(450-900) | 1100*700*(450-900) |
Feed opening size(L*H)mm | 800*450 | 1000*500 | 1100*500 | 1100*500 | 1100*500 |
Capacity(Bales/Hr) | 4-7 | 4-7 | 4-7 | 4-7 | 4-6 |
Bale weight(Kg) | 50-120 | 90-160 | 120-200 | 200-250 | 250-350 |
Voltage(Customizable)(V/Hz) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Power(Kw/Hp) | 3Kw/4Hp | 4Kw/5.5Hp | 5.5Kw/7.5Hp | 5.5Kw/7.5Hp | 7.5Kw/10Hp |
Machine size(L*W*H)mm | 1070*850*2850 | 1400*950*3000 | 1550*950*3050 | 1550*1100*3250 | 1550*1100*3250 |
Machine weight(Kg) | 800 | 850 | 1340 | 1500 | 1760 |
