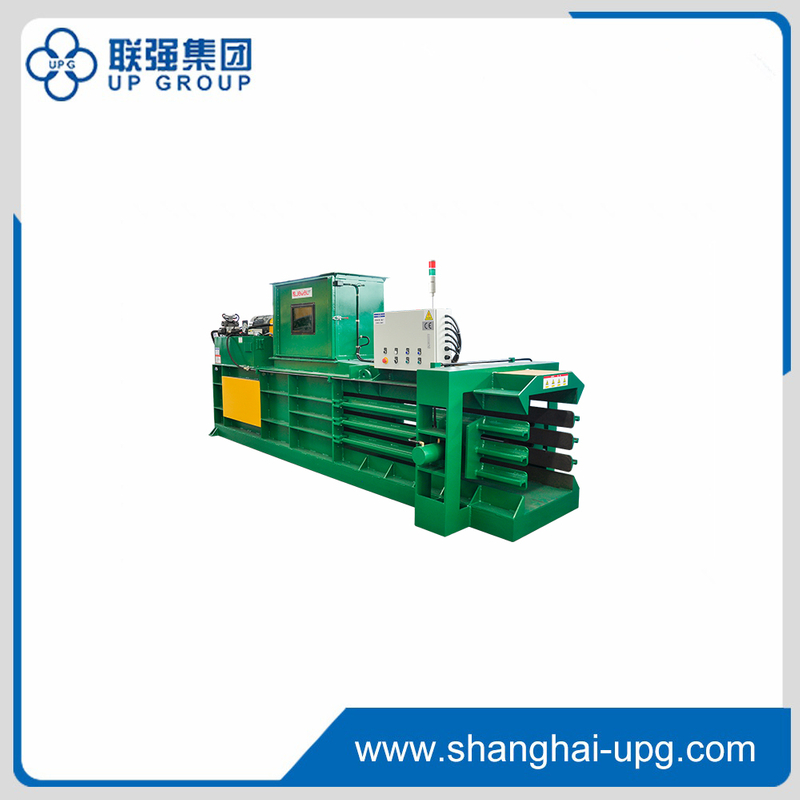

LQWE
UPG
* Adopting the left and right shrinking method through the oil cylinder automatic and manual tightening and relaxation easy to adjust.
* Left -right compressing and pushing bale out the length of bale can be adjusted pushing out bale continuously to improve work efficiency.
* PLC program control electric button control simple operation with feeding detection and automatic compression.
* The baling length can be set and there are bundling reminders and other devices.
* The size and voltage of the bale can be customized according to the reasonable requirements of the customer. The weight of the bale is different for different packaging materials.
* Three-phase voltage safety interlock simple operation can be equipped with air pipe and conveyor feeding material with higher efficiency.
* Adopting the left and right shrinking method through the oil cylinder automatic and manual tightening and relaxation easy to adjust.
* Left -right compressing and pushing bale out the length of bale can be adjusted pushing out bale continuously to improve work efficiency.
* PLC program control electric button control simple operation with feeding detection and automatic compression.
* The baling length can be set and there are bundling reminders and other devices.
* The size and voltage of the bale can be customized according to the reasonable requirements of the customer. The weight of the bale is different for different packaging materials.
* Three-phase voltage safety interlock simple operation can be equipped with air pipe and conveyor feeding material with higher efficiency.
Model | LQW40E | LQW60E | LQW80E | LQW100E | LQW120E | JPW150E |
Compression force(Ton) | 40 | 60 | 80 | 100 | 120 | 150 |
Bale size(W*H*L)mm | 720*720*(500-1300) | 750*850*(500-1600) | 1100*800*(500-1800) | 1100*1100*(500-1800) | 1100*1200*(500-2000) | 1100*1200*(500-2100) |
Feed opening size(L*W)mm | 1000*720 | 1200*750 | 1500*800 | 1800*1100 | 2000*1100 | 2200*1100 |
Bale line | 4 lines | 4lines | 4lines | 5lines | 5lines | 5lines |
Bale weight(Kg) | 200-400 | 300-500 | 400-600 | 700-1000 | 800-1050 | 900-1300 |
Power(Kw/Hp) | 11Kw/15Hp | 15Kw/20Hp | 22Kw/30Hp | 30Kw/40Hp | 37Kw/50Hp | 45Kw/61Hp |
Capacity(Ton/Hr) | 1-2 | 2-3 | 4-5 | 5-7 | 6-8 | 6-8 |
Out bale way | Continuously push bale | Continuously push bale | Continuously push bale | Continuously push bale | Continuously push bale | Continuously push bale |
Machine Size(L*W*H)mm | 4900*1750*1950 | 5850*1880*2100 | 6720*2100*2300 | 7750*2400*2400 | 8800*2400*2550 | 9300*2500*2600 |
Model | LQW40E | LQW60E | LQW80E | LQW100E | LQW120E | JPW150E |
Compression force(Ton) | 40 | 60 | 80 | 100 | 120 | 150 |
Bale size(W*H*L)mm | 720*720*(500-1300) | 750*850*(500-1600) | 1100*800*(500-1800) | 1100*1100*(500-1800) | 1100*1200*(500-2000) | 1100*1200*(500-2100) |
Feed opening size(L*W)mm | 1000*720 | 1200*750 | 1500*800 | 1800*1100 | 2000*1100 | 2200*1100 |
Bale line | 4 lines | 4lines | 4lines | 5lines | 5lines | 5lines |
Bale weight(Kg) | 200-400 | 300-500 | 400-600 | 700-1000 | 800-1050 | 900-1300 |
Power(Kw/Hp) | 11Kw/15Hp | 15Kw/20Hp | 22Kw/30Hp | 30Kw/40Hp | 37Kw/50Hp | 45Kw/61Hp |
Capacity(Ton/Hr) | 1-2 | 2-3 | 4-5 | 5-7 | 6-8 | 6-8 |
Out bale way | Continuously push bale | Continuously push bale | Continuously push bale | Continuously push bale | Continuously push bale | Continuously push bale |
Machine Size(L*W*H)mm | 4900*1750*1950 | 5850*1880*2100 | 6720*2100*2300 | 7750*2400*2400 | 8800*2400*2550 | 9300*2500*2600 |
