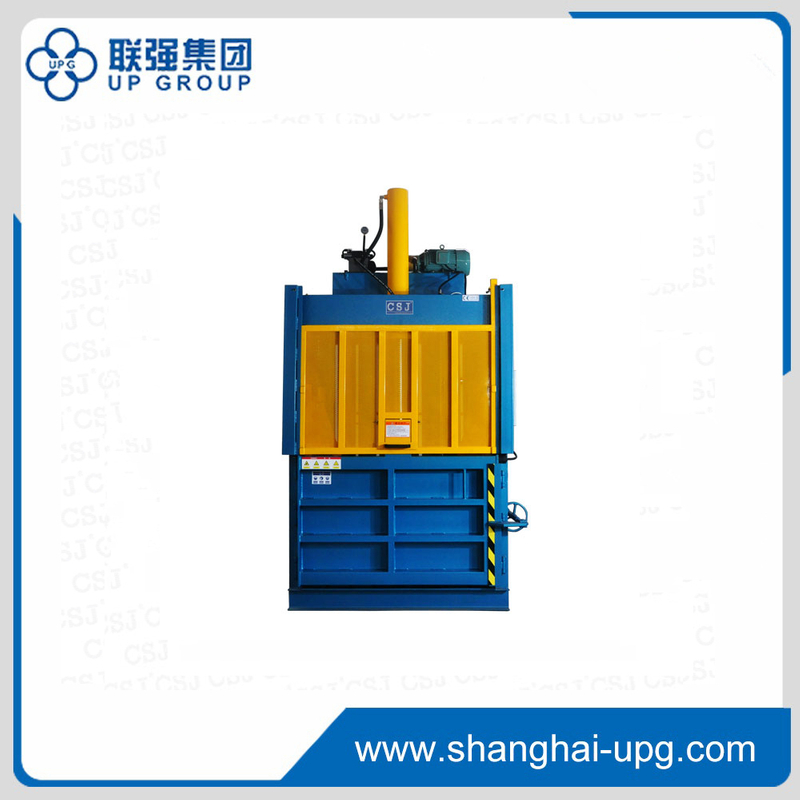

LQA series Medium-sized vertical baler

It is suitable for the recycling, compression and baling of waste paper, plastics, cartons, waste and other conventional materials, with strong model selection; suitable for use in various Chinese and foreign enterprises, logistics and supermarket industries.
Availability:
Quantity:

PDF Export

LQA series Medium-sized vertical baler
  • LQA5076T50M

  • UPG

It is suitable for the recycling, compression and baling of waste paper, plastics, cartons, waste and other conventional materials, with strong model selection; suitable for use in various Chinese and foreign enterprises, logistics and supermarket industries.


* U-shaped balance device avoids accidents caused by uneven material placement.

* The feed opening adopts up and down movable door opening, which reduces the door opening space and facilitates feeding.

* Safety interlock, with turn-over system.

* The feeding chamber adopts a device to prevent material rebound, which greatly saves feeding time.

* High-quality spare parts ensure the service life of the equipment.

* Up and down movable door opening saves the space of the left and right door opening arc, and the appearance is beautiful, it is a popular model for more exports.


Model

LQA1070T30M

LQA1075T40M

LQA5076T50M

Compression force(Ton)

30

40

50

Bale size(L*W*H)mm

1100*700*(650-900)

1100*750*(700-1000)

1500*760*(700-1000)

Feed opening size(L*H)mm

1050*500

1050*500

1450*600

Capacity(Bales/Hr)

3-6

3-5

3-5

Bale weight(Kg)

150-250

200-350

350-500

Voltage (customizable)(V/Hz)

380V/50Hz

380V/50Hz

380V/50Hz

Power(Kw/Hp)

5.5Kw/7.5Hp

5.5Kw/7.5Hp

7.5Kw/10Hp

Machine size(L*W*H)mm

1580*1100*3208

1580*1150*3450

2000*1180*3650

Machine weight(Kg)

1200

1700

2300
