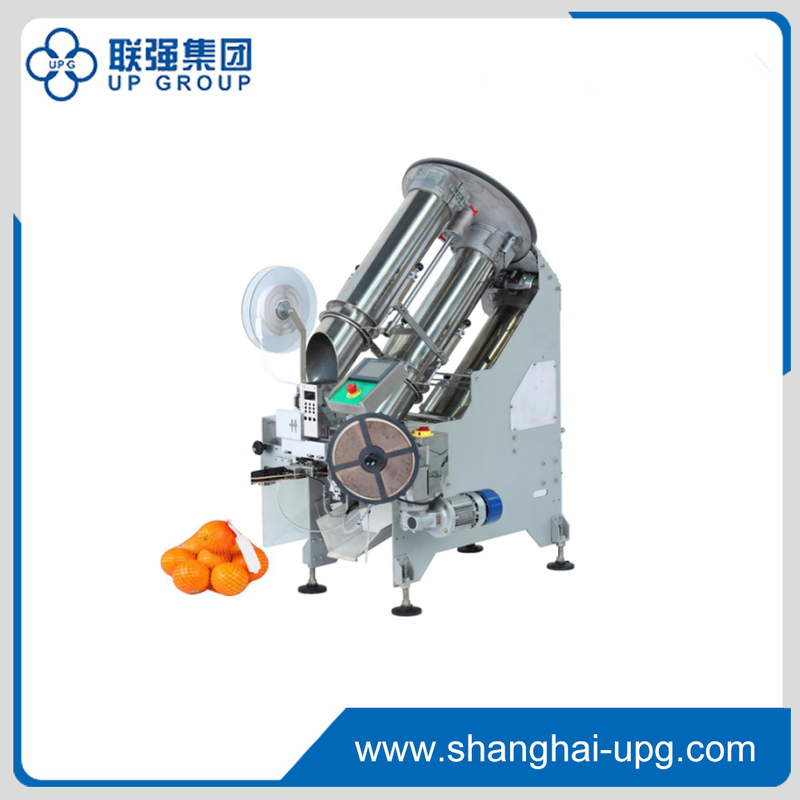

LQ-SP-2-1 Automatic Clipping Machine

It is designed to pack fruits and vegetables such as oranges, lemons, grapefruits, potatoes, onions, pepper and so on. as well as industrial products into netting sleeves which are closed at both ends by a metallic staple.
Availability:
LQ-SP-2-1 Automatic Clipping Machine
  • LQ-SP-2-1

  • UPG

Applications
It is designed to pack fruits and vegetables such as oranges, lemons, grapefruits, potatoes, onions, pepper and so on. as well as industrial products into netting sleeves which are closed at both ends by a metallic staple.
Main Features
1. Possibility of an automatic change of tube, controlled only by one motor.
2. Net cutting is through a sliding system with two gears: a slow for making the pack and a fast one for getting back the remaining net and returning to the start position.
3. One-use strip band cassette which can be easily and rapidly changed.

image1image2image3image4image5image6

公司风貌7-FAQ公司风貌8-Contact us

Model LQ-SP-2-1
Capacity 25-30bpm(adjust for the relative machine)
Weight of Dose 0.5kg-5kg
Dia. of Cylinder 203mm
Power 2.6kw
Voltage 380V/AC 50Hz
Air Supply 0.6mpa, 1.5m3/h
Overall Dimensions(L*W*H) 1840x720x2010mm
Weight 800kg
