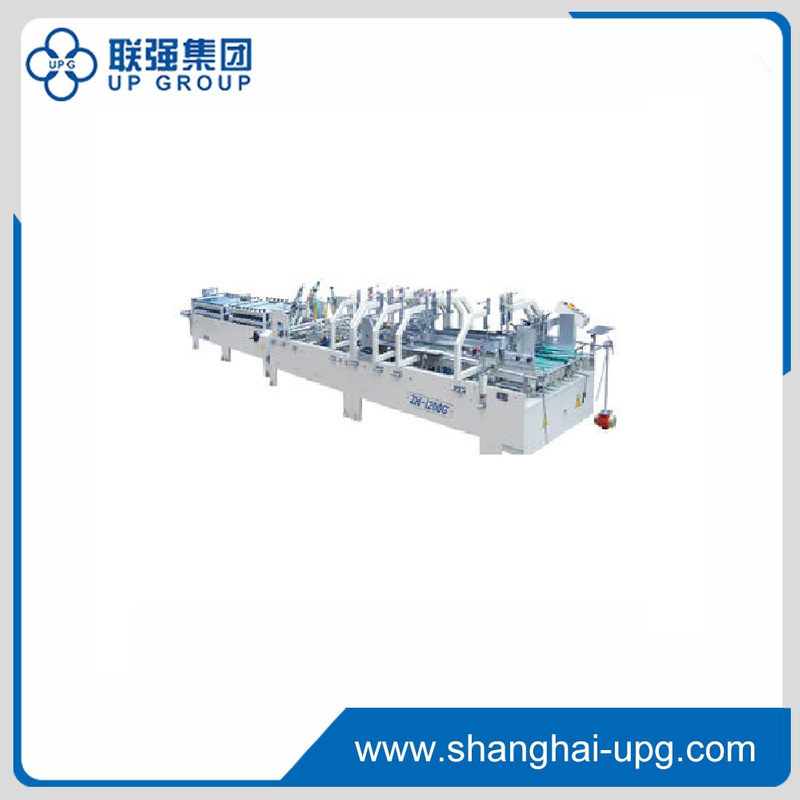

LQ-ZH-1200G Automatic Crash Lock Bottom Folder Gluer with Pre-fold machine

LQ-ZH-1200G Automatic Crash Lock Bottom Folder Gluer with Pre-fold machine
Availability:
Quantity:
  • LQ-ZH-1200G

  • LQ

LQ-ZH-1200G Automatic Crash Lock Bottom Folder Gluer with Pre-fold machine


1551338160(1)

Performance

LQ-ZH-1200G folder gluer is specially designed for large straight line box large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm. Larger sized folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt of ZH1200G can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased. Its motor can be separately and makes the collecting effect better. It is ideal equipment for the packing factories.




Specification

Model

LQ-ZH-1200G

Line speed

280m/min,   continuous adjustment

Usage  paper

220~600g/m2   Paperboard, E corrugated board

Box forming

Either side folds,   either side pre-folds, crash lock bottom

Fold method

1st & 3rd   folds 90°

2nd   & 4th folds 180°

Paper feeding

Automatic feeding

Glue type

Cold type

Electric

AC380V, 6kw

Weight

3000kg

Dimension

10500 x 1300 x 1300   (mm)
