LQ-ZH-GD800/1100SL
UPG

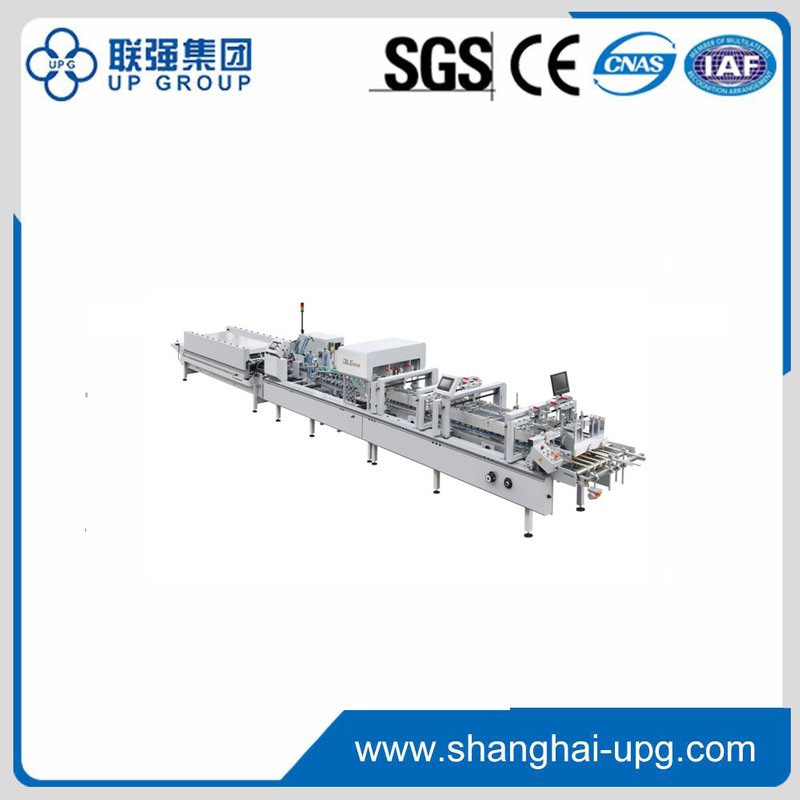

LQ-ZH-GD800/1100SL AUTOMATIC FOLDER GLUER (4&6 CORNER)
The whole machine adopts the structure of laser-cut steel plates.
Transmission adopts imported synchronous belts and wheels
LQ-ZH-GD800/1100SL AUTOMATIC FOLDER GLUER (4&6 CORNER)
The whole machine adopts the structure of laser-cut steel plates.
Transmission adopts imported synchronous belts and wheels
| LQZH-GD800SL | LQZH-GD1100SL | ||
| Paper size | Max size for straight line box | W×L: 800×700 mm Min：90×60 mm | W×L: 1100×1000 mm Min：90×60 mm |
| Max size for double-sided box | W×L: 700×800 mm Min：90×60 mm | W×L:1100×1000 mm Min：90×60 mm | |
| Max size for lock bottom box | W×L: 700×800 mm Min：120×60 mm | W×L: 1000×1100 mm Min：180×60 mm | |
| Max size for 4-corner box | 700 mm Min：150 mm | 1000 mm Min：150 mm | |
| Max size for 6-corner box | 700 mm Min：250 mm | 1000 mm Min：250 mm | |
| Paper weight | duplex box 180-800g/m2, E.F.G (Corrugated) | Duplex box 180-800g/m2, E.F.G (Corrugated) | |
| Max speed | 250m/min | 250m/min |
