LQ-ZH-800A/880A/1000A
UPG
Performance

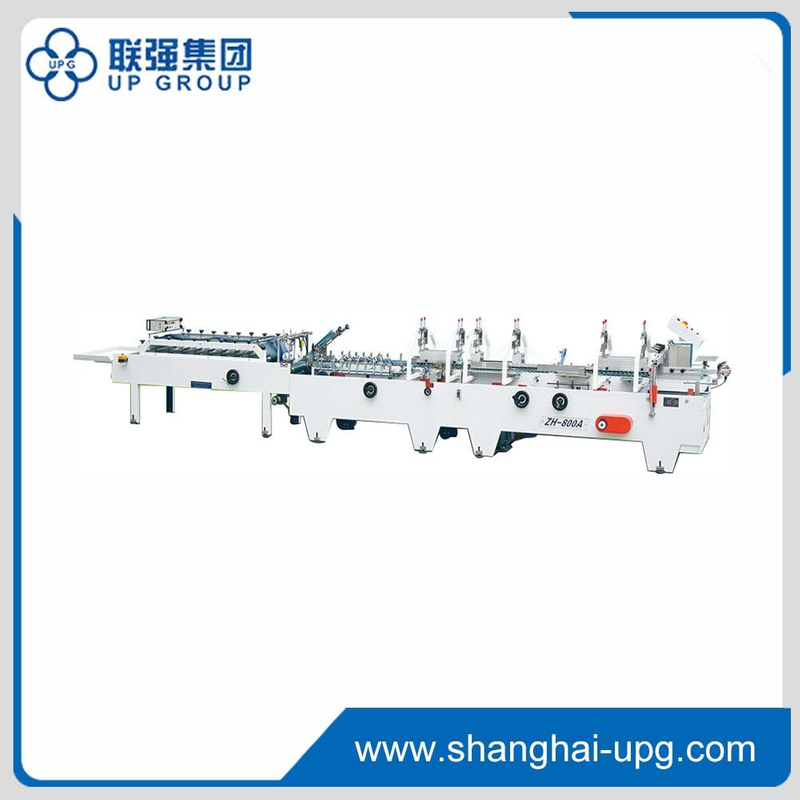

The LQ-ZH-800A is one type of the pre-fold equipments. It adds first line folds 180°,and third line folds 90°.With pre-fold function, the box can be open easily, In the automatic packing machine, particularly for the medicine box. It is widely used in medicine box, wine box and other box. It's an essential equipment for printing industry..
Performance
The LQ-ZH-800A is one type of the pre-fold equipments. It adds first line folds 180°,and third line folds 90°.With pre-fold function, the box can be open easily, In the automatic packing machine, particularly for the medicine box. It is widely used in medicine box, wine box and other box. It's an essential equipment for printing industry..
Specification
Model | LQ-ZH-800A |
Line speed | 0~220m/min continuous adjustment |
Usage paper | 210~600g/m2 Paperboard |
Box forming | Either side folds, the both sides pre-fold and either side glue |
Paperboard Feeding | Automatic feeding |
Way of folding | First、second and fourth lines fold 180, third line fold 90; |
Binder | Dissovle the type |
Speed | 6000c/min |
Electric | Single-phase、AC220V、3.7kw |
Weight | 2000kg |
Dimension | 8500 X 900 X1300 (mm) |
The counting range | 0-999999 (full automatic) |
Specification
Model | LQ-ZH-800A |
Line speed | 0~220m/min continuous adjustment |
Usage paper | 210~600g/m2 Paperboard |
Box forming | Either side folds, the both sides pre-fold and either side glue |
Paperboard Feeding | Automatic feeding |
Way of folding | First、second and fourth lines fold 180, third line fold 90; |
Binder | Dissovle the type |
Speed | 6000c/min |
Electric | Single-phase、AC220V、3.7kw |
Weight | 2000kg |
Dimension | 8500 X 900 X1300 (mm) |
The counting range | 0-999999 (full automatic) |
