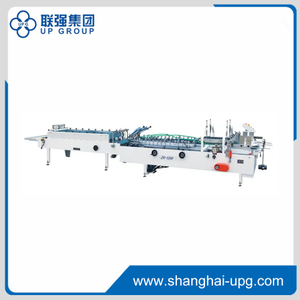

LQ-L 60/80/110
UPG
Machine Main Structure
Machine includes Feeder, Side Register, Pre-folding Section, Lock bottom Section, Closing Section, Transfer Section, Press Section
Feeder
Independent variable-frequency motor
Micro-electronic vibration motor
Vacuum suction device(selection)
Side Register
Accurate guide for blanks before folding
To position the box on the left or right side
To promise the box aligned before folding.

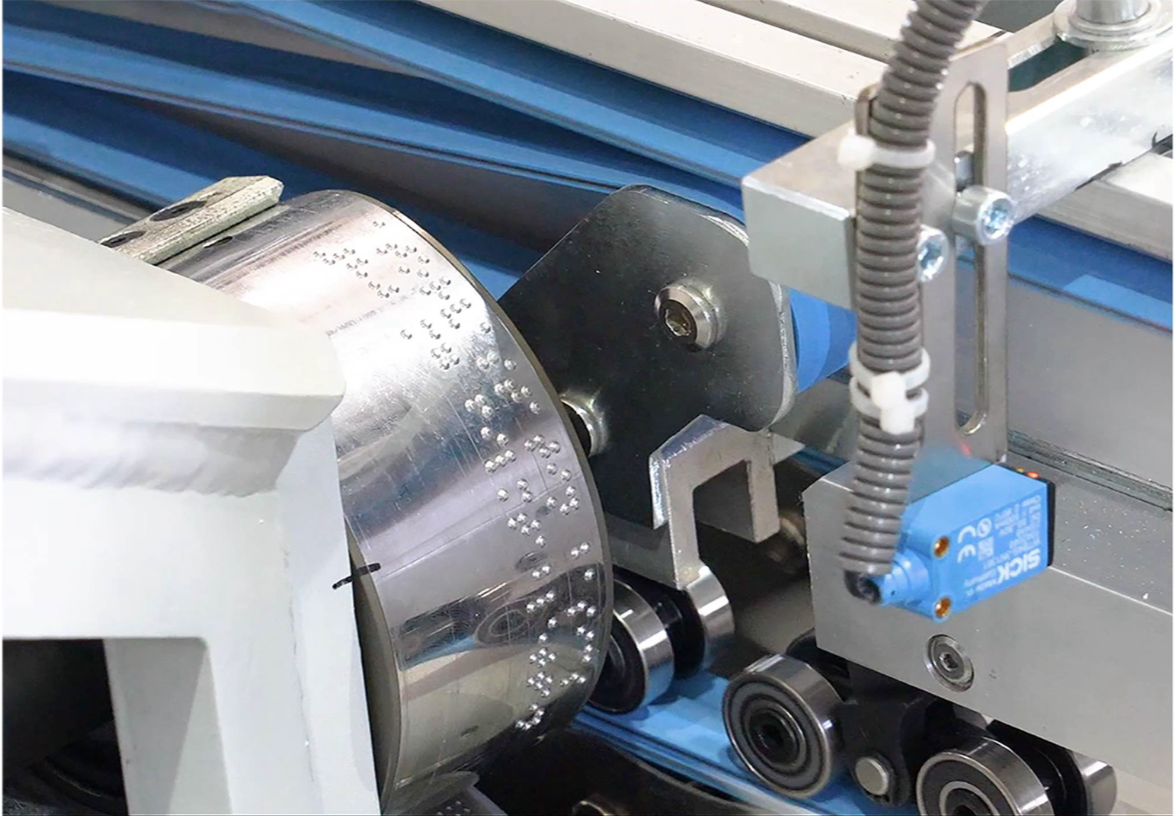

Braille function module(Optional)
Module dimension L×W×H =1200×1400×1280mm
Modular design, and servo control system control two parallel axis operation, convenient folding glue machine at any time to add braille function module
The operation is always synchronized with the speed of folding glue machine
Pressure can be easily adjusted according to paper thickness and braille size
Pre-folding Section
Lengthening design
1st crease pre-folding at most 180°
3rd crease pre-folding at most 135°
Lock-bottom Section
High speed lock-bottom device
A type lock-bottom box device
B type lock-bottom box device
Back-folding (optional)
Intelligent servo motor technology
Electronic control hooking system
Accurate folding of micro Flute E,F,N carton,and all kinds of cardboards.
Closing Section
Folding 2nd and 4th creasing line in high speed
Adjustable outer belt speed
Bell-mouth correction device
Transfer section
Independent variable-frequency motor
High-speed counter
Box ejector Device (optional)
Press Section
Pneumatic Press Adjustment
Independent variable-frequency motor
Automatic adjustment of space between boxes
Characteristics of Lilong series automatic high speed folding gluer:
Advanced Design Concept: 1. Simple: part structure keeps improving and simplifying 2. Easy: convenient and quick to adjust machine 3. Efficient and versatile: machine with multi-function and high-efficient production
Flexible and changeable modular design: production and configuration are easy for arbitrary combination of configuration according to customers' carton;
Modular design is with good expansibility. Each carton has corresponding independent accessories. Customer just increases accessories to complete all kinds of carton gluing instead of reinvesting on machine. Company has technical support on carton library including thousands of cartons and expansion support on accessory library of corresponding carton. Change carton just need change accessories;
Machine is with good rigidity, strength and stability. Machine structure is made strengthening design, and motion shaft uses 60mm linear shaft with self-lubricating bearing; bearing, electrical parts are all used import or joined venture brand.
Firstly adopting poly V-belt drive is with stable transmission, low noise and high precision
Lengthening design of pre-folding section and closing section is the longest structure in similar machines: 1. large space is easy to add accessories for expansion; 2. carton runs stable and fast during pre-folding and opening process with better carton result, high folding precision and good adaption.
High speed counter module ensures accurate dozen marking.
Optional: Automatic Adjustment Module
We have an automatic drive unit for each carrier, it can be adjusted automatically with HT200 operating system. The system can automatically save all processed produce date for the next processing. When you need just put one key, all carrier will be automatically moved to the first position.
