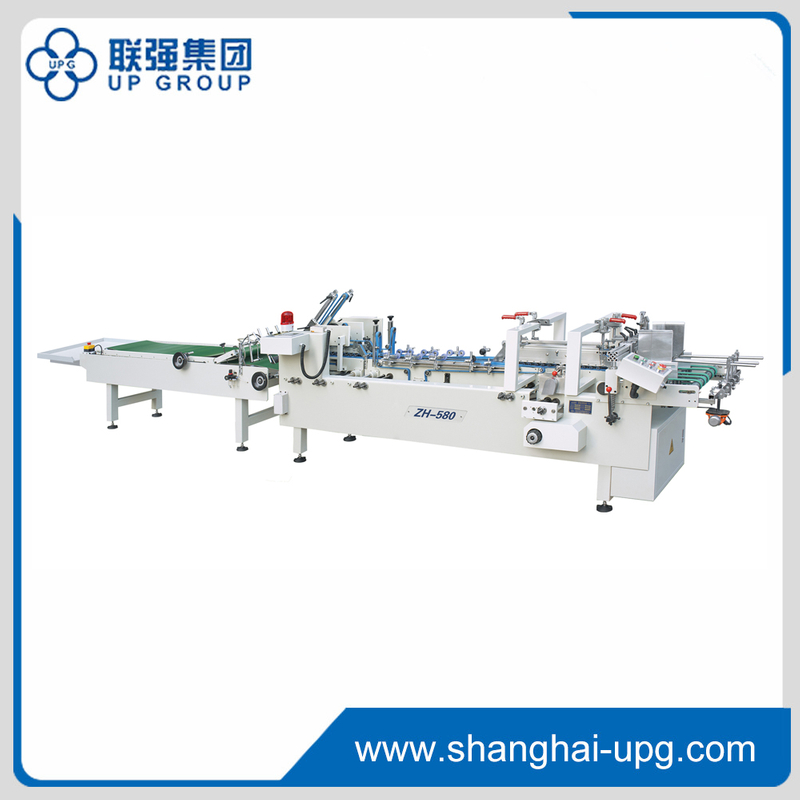

LQ-ZH-580/780/980 Automatic Folder Gluer

The whole machine steel frame adopts laser cutting, after-punching folding. So the structure is more reasonable, assembling is more accurate and running is more stable
It adopts synchronous belt driving. Synchronous driving is faster, noise-lower and safer
Adopts PLC and frequency speed regulator
It can be applied to duplex board and E/F/N corrugated cardboard
The maximum speed is 300m/min, standard speed is 50000pc/hour

Quantity:
  • LQ-ZH-580/780/980
  • UPG

Performance
The whole machine steel frame adopts laser cutting, after-punching folding. So the structure is more reasonable, assembling is more accurate and running is more stable
It adopts synchronous belt driving. Synchronous driving is faster, noise-lower and safer
Adopts PLC and frequency speed regulator
It can be applied to duplex board and E/F/N corrugated cardboard
The maximum speed is 300m/min, standard speed is 50000pc/hour

Specification

Usage paper 180~650g/m2 Paperboard, E corrugated board
Box forming Straight line, double side (optional)
Speed 300m/min
Electric AC220V, 2.2kw
Weight 1500kg
Dimension 6400 x 1000 x 1400 (mm)
