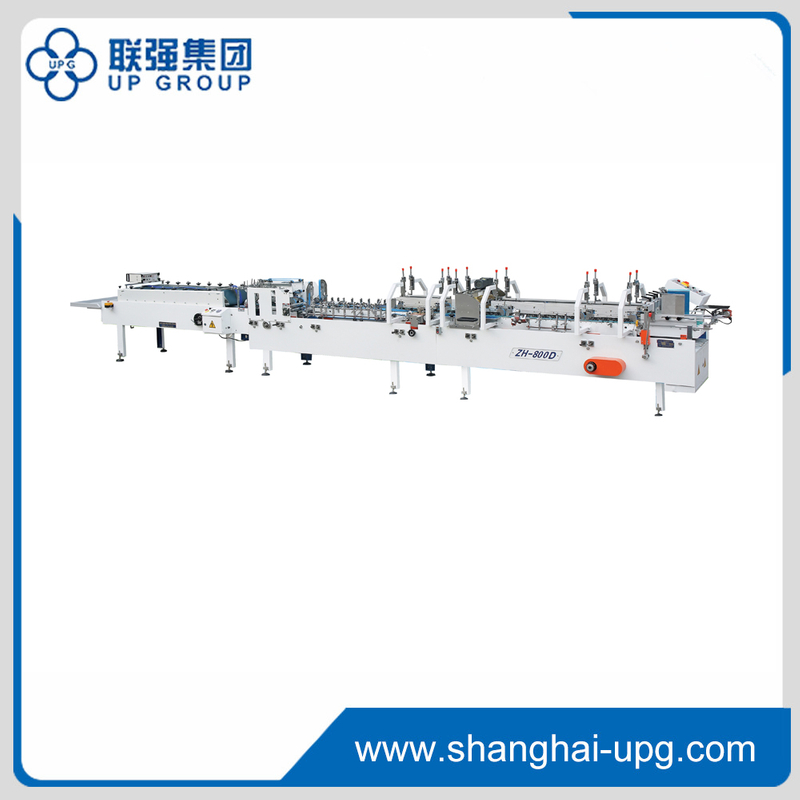

LQ-ZH-800D/880D/1000D Automatic Multi-functional Crash Lock Bottom Folder Gluer (Advanced Configuration)

ZH-800D/880D/1000D have the same structure with ZH800G/880G/1000G. Based on G-series, D-series has the following improvements:
1. ZH-D series adds the upper belt on the folding unit to improve the stability in box movement.
2. Adds the pre-press section before the press section to improve the stability and smoothness in box movement
3. Pressing unit has separate motor to control speed. It has auto trombone control function (only when the box coming, the pressing unit works).

Quantity:
  • LQ-ZH-800D/880D/1000D
  • UPG

Performance
ZH-800D/880D/1000D have the same structure with ZH800G/880G/1000G. Based on G-series, D-series has the following improvements:
1. ZH-D series adds the upper belt on the folding unit to improve the stability in box movement.
2. Adds the pre-press section before the press section to improve the stability and smoothness in box movement
3. Pressing unit has separate motor to control speed. It has auto trombone control function (only when the box coming, the pressing unit works).

Specification

Model ZH-800D
Line Speed 0~220m/min adjustable
Paper board 210~600g/m2 paperboard
Box forming Either side folds, either sides pre-fold, and crash lock bottom
Paper board feeding Continuous automatic
Way of folding 1st, 2nd and 4th line can do fold 180&°,3rd
Line 135°
Glue type Cold glue
Power 3.7Kw, AC220V, Single phase
Weight 2000Kg
Dimension 8500*900*1300mm
The counting range 0~999999 (full automatic)

QQ截图20171115111634
