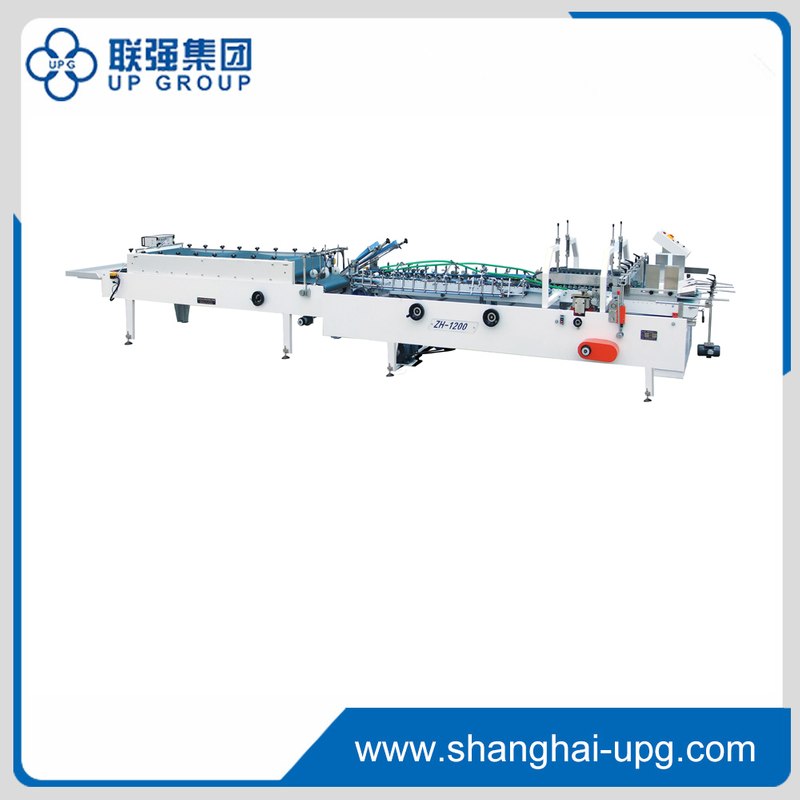

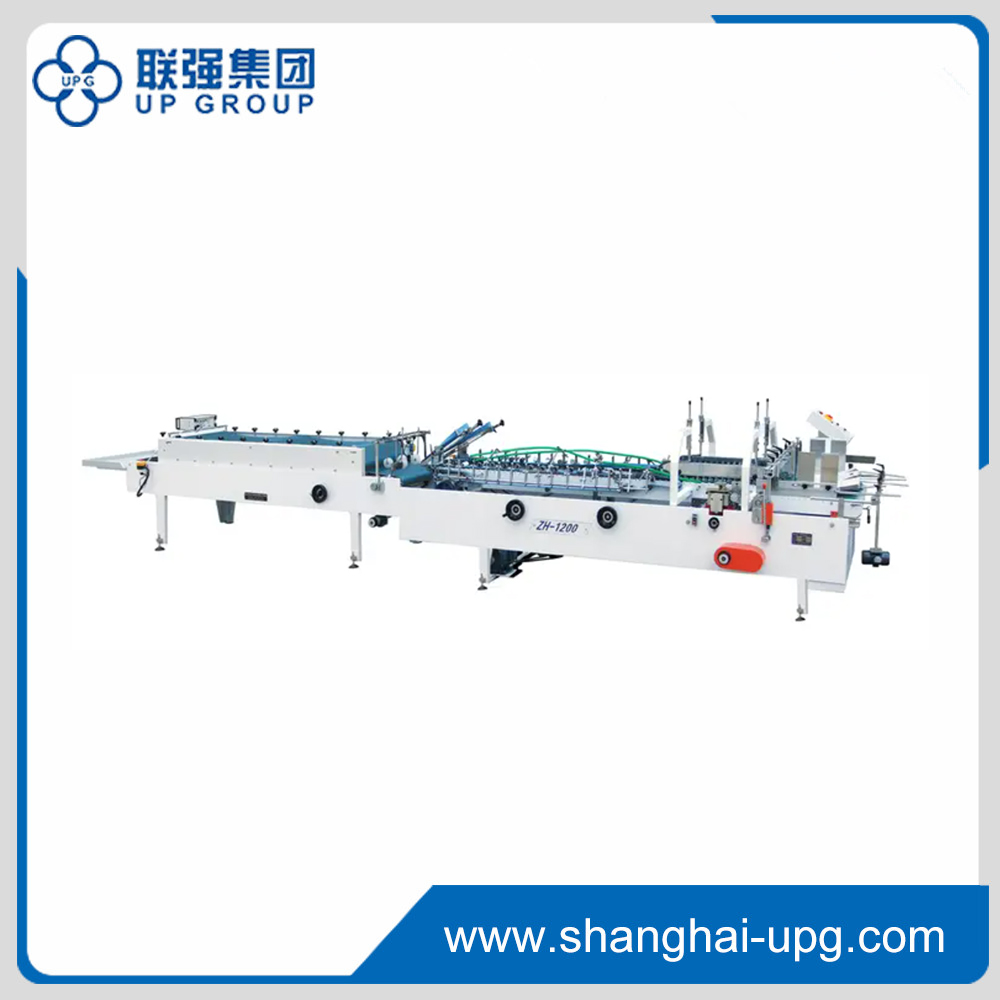

LQ-ZH-1200 Automatic Large Straight Line Box Folder Gluer

ZH-1200 folder gluer is specially designed for large straight line box. Feeding width can be up to 1000mm. Extra longer size folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt of ZH1200 can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased. It is ideal equipment for the packing factories.
Availability:
Quantity:
  • LQ-ZH-1200

  • UPG

Performance
LQ-ZH-1200 folder gluer is specially designed for large straight line box. Feeding width can be up to 1000mm. Extra longer size folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt of ZH1200 can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased. It is ideal equipment for the packing factories.

Specification

Model LQ-ZH-1200
Line speed 200m/min, continuous adjustment
Usage paper 220~600g/m2 Paperboard
Box forming Either side folds
Paper feeding Automatic feeding
Glue type Cold type
Electric AC220V/380V, 3.7kw
Weight 2000kg
Dimension 7000 x 1300 x 1300 (mm)
