LQ-PK 40
UPG

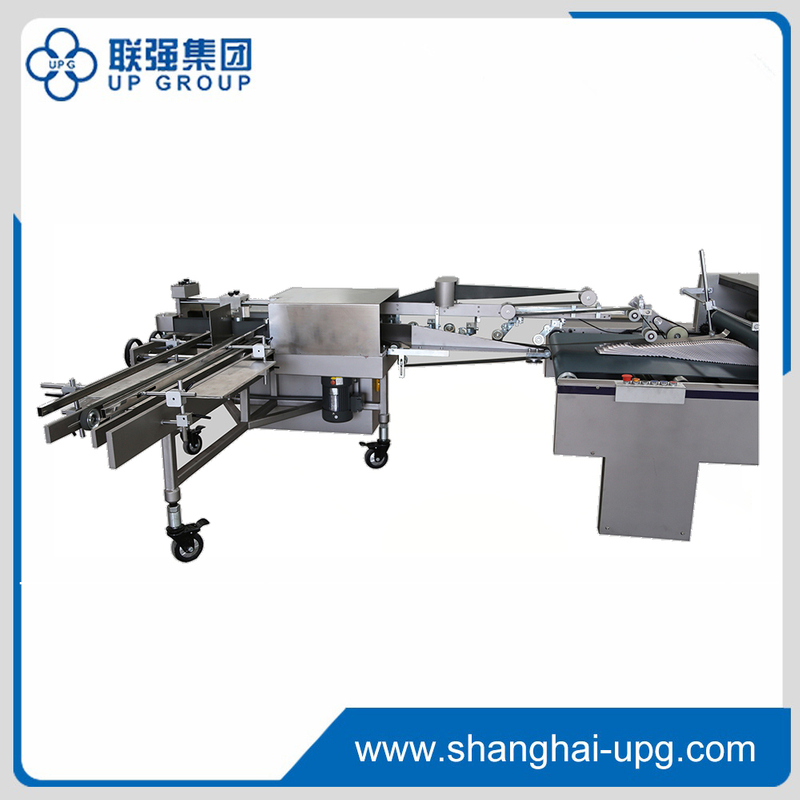

This machine is specially designed for the auxiliary box receiving equipment at the rear of the high-speed box pasting machine. It can erect all the fish scale cartons at the rear of the box pasting machine, directly pick up the boxes or bundle them, greatly reduce the labor intensity of workers and improve the box receiving production efficiency. It is suitable for high-speed box pasting and can be used online with high-speed box pasting machines of major brands, At the same starting speed, it can reduce 1 to 2 box receiving workers or increase the starting speed of the box pasting machine by more than 30% under the condition of the same number of box receiving workers.
This machine is specially designed for the auxiliary box receiving equipment at the rear of the high-speed box pasting machine. It can erect all the fish scale cartons at the rear of the box pasting machine, directly pick up the boxes or bundle them, greatly reduce the labor intensity of workers and improve the box receiving production efficiency. It is suitable for high-speed box pasting and can be used online with high-speed box pasting machines of major brands, At the same starting speed, it can reduce 1 to 2 box receiving workers or increase the starting speed of the box pasting machine by more than 30% under the condition of the same number of box receiving workers.
Item | Automatic Box Pack |
Box Type | Straight line box, Four/Six corner box |
Paper | Paper Board(Cardboard) 200-600g/㎡ |
Box Size | Min Width 80mm;Max Width 400mm Min Length 80mm;Max Length 400mm |
Max Stack Thickness | 70mm |
Dimension | L×W×H 2600×1850×1100mm Actual Floor Area L×H 2100×1850mm |
Part | Manufacturer |
Bearing | Japan NSK |
Belt | Japan NITTA |
PLC | Taiwan DELTA |
Frequency converter | Taiwan DELTA |
Relay and other components | Schneider, France |
Encoder | Ottonix Korea |
Butten | IDEC Japan |
