LQ-ZH-GD800/1100
UPG

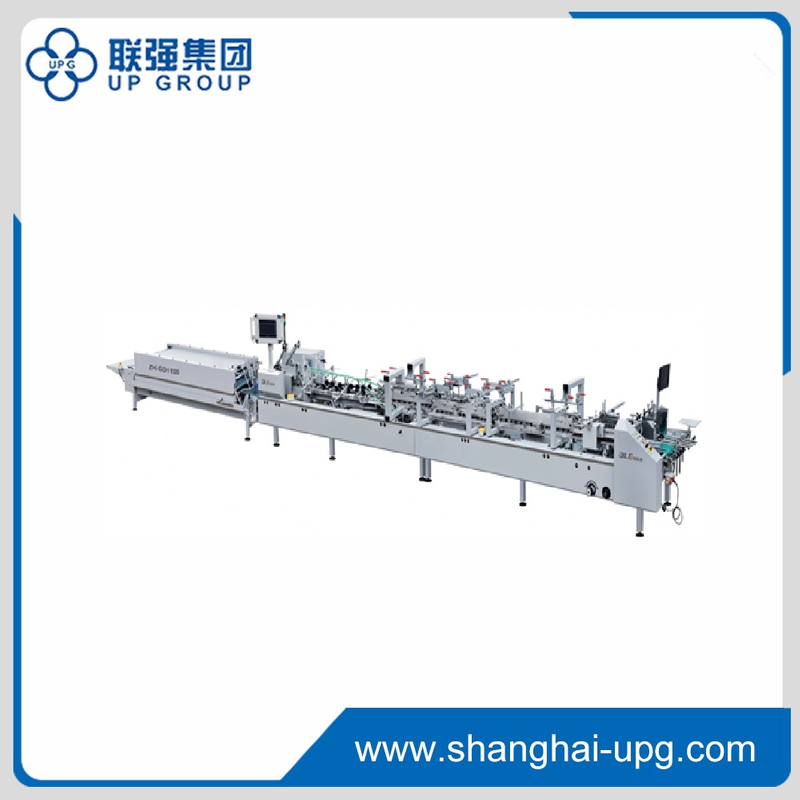

This machine is used to handle paper boxes requiring three-point(lock-bottom) or one point(side gluing) gluing with pre-folding and edge-polishing mechanism, integration of photographic, mechanic and electric technologies, suitable for more kinds of paper boxes, such as medicine, toiletries, electricity, food and other boxes.
| Paper size： | straight line box | W×L: max 800×700 mm | min 90×60 mm |
| lock bottom box | W×L: max 700×800 mm | min 180×60 mm | |
| If the machine is equipped with mini-box device, min open width: 60mm | |||
| Paper weight： | 200－650 g/m2 paperboard, E corrugated boxes | ||
| Speed： | 250m/min | ||
| Machine size： | 11000×1400×1400mm（40 feet container is required） | ||
| Packing size: | 3.4*1.5*2.1 m 1300/1300kgs (conveyor is overlapped here) | ||
| 3.3*1.5*1.6m 900/1000kgs | |||
| 4.2*1.3*1.6m 1000/1100kgs （optional pneumatic conveyor） | |||
| Machine weight： | 2400Kg | ||
| Total power: | 9KW | ||
