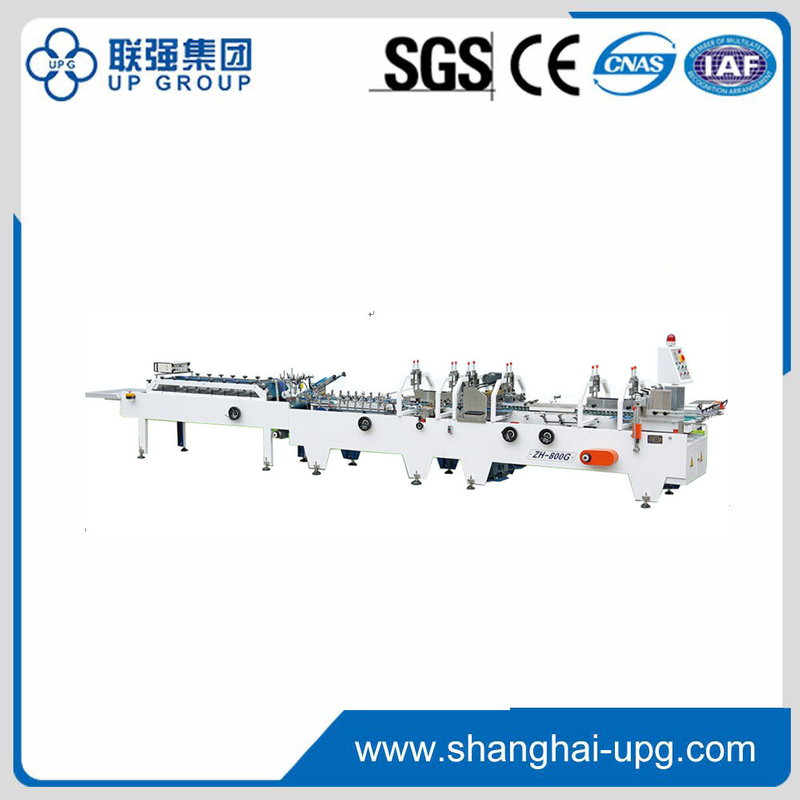

LQ-ZH-800G/880G/1000G Automatic Multi-functional Crash Lock Bottom Folder Gluer machine

LQ-ZH-800G/880G/1000G Automatic Multi-functional Crash Lock Bottom Folder Gluer (Standard Configuration)
Availability:
Quantity:

PDF Export

LQ-ZH-800G/880G/1000G Automatic Multi-functional Crash Lock Bottom Folder Gluer machine
  • LQ-ZH-800G/880G/1000G

  • LQ

LQ-ZH-800G/880G/1000G Automatic Multi-functional Crash Lock Bottom Folder Gluer (Standard Configuration)

1551337867(1)

Performance

LQZH-800G/880G/1000G is the most competitive folder gluer with crash lock bottom through our company independent research. It has two National Patents. Its easy operation, reasonable price and wide application make it a new leap forward in the history of folder gluer. It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box. Our machine is featured by multi-function, wide application, easy operation and lower price. Compared to older generation folder gluer, our machine simplify the complicated construction, reduce the difficulty of test run and decrease the machine’s cost. Especially for the current packaging and printing industry, it brings new hope to the weak point of folder gluer industry: shorter delivery time, constricted function, more competitive price. It is ideal equipment in printing industry.





ModelLQ-ZH-800G
Line speed0~220m/min continuous adjustment
Usage paper210~600g/m2 Paperboard
The forming of pasting boxEither side folds, the both sides pre-fold and either side glue, bottom glue
Paperboard feedingAutomatic feeding
Way of foldingOne、two and four fold 180°, three fold 90°;
BinderDissovle the type
Speed6000c/min
Electricsingle-phase、AC220V、3.7kw
Weight2000kg
Dimension8500 x 900 x 1300 (mm)
The counting range0~999999 (full-automatic)
