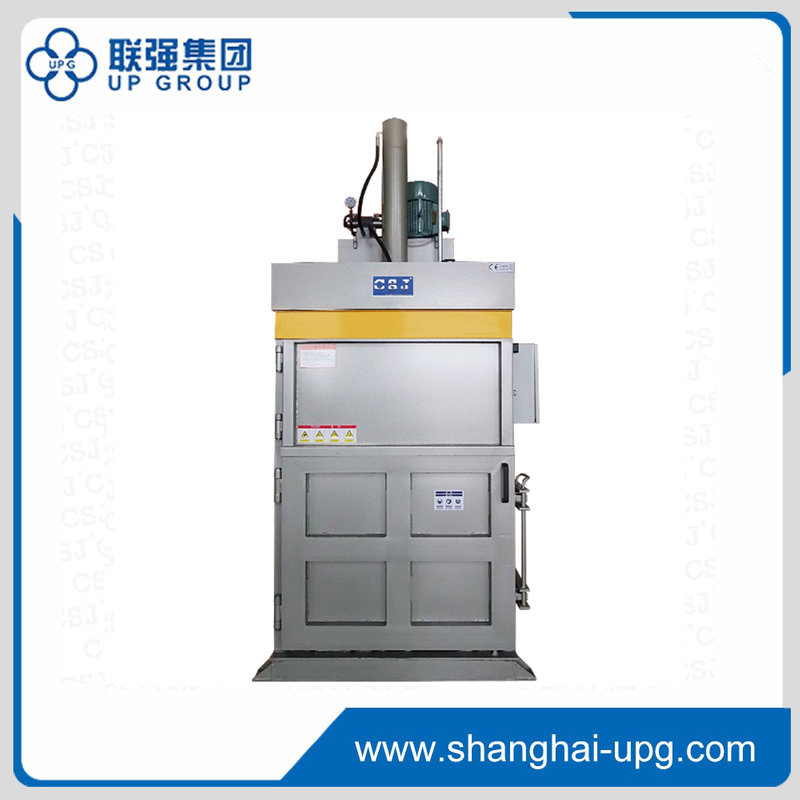

LQA Series Medium-sized Vertical Hydraulic Balers

Applicable to recycling waste paper, plastic, cardboard, cotton and other conventional materials, and there are a variety of models for selection; suitable for different enterprises, logistics and supermarkets, especially suitable for cartons.

  • LQA
  • UPG
* Vertical integrated machine, front door opening style, less occupied area, ideal model for recycling industry.
* Feeding chamber install preventing material rebound device, save charging time greatly.
* Separate feeding opening, automatic bales out device, easy and simple to operate, with safety interlock, safe and reliable.
* New structure, U-type pressing platen, strong and prevent slanting compression.
* Patent lock opening device, fast, convenient, safety.
* Adopt England brand sealing parts, improve the life time of oil cylinder.
* Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.
* Adopt Taiwan brand superposition type valve group.
* Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.

Model  LQA1070T16C LQA1070T30C LQA1075T40C LQA5075T50C
Hydraulic power 16Ton 30Ton 40Ton 50Ton
Bale sizeL*W*H 1100*700*700 1100*700*(650-900)mm 1100*750*(650-900)mm 1500*750*(700-1000)mm
Feed opening sizeL*H 1100*500mm 1100*500mm 1100*500mm 1500*600mm
Capability 4-7bales/hour 3-6bales/hour 3-5bales/hour 3-5bales/hour
Bale weight  80-120Kg 150-250Kg 200-350Kg 350-500Kg
Voltagecan be customized 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Power 4KW/5.5HP 5.5KW/7.5HP 5.5KW/7.5HP 7.5KW/10HP
Machine sizeL*W*H 1450*920*2850mm 1500*950*3150mm 1500*1000*3150mm 1850*1200*3300mm
Weight 850Kg 1200Kg 1700Kg 2300Kg
* the above parameters can be customized to customer's requirement.
