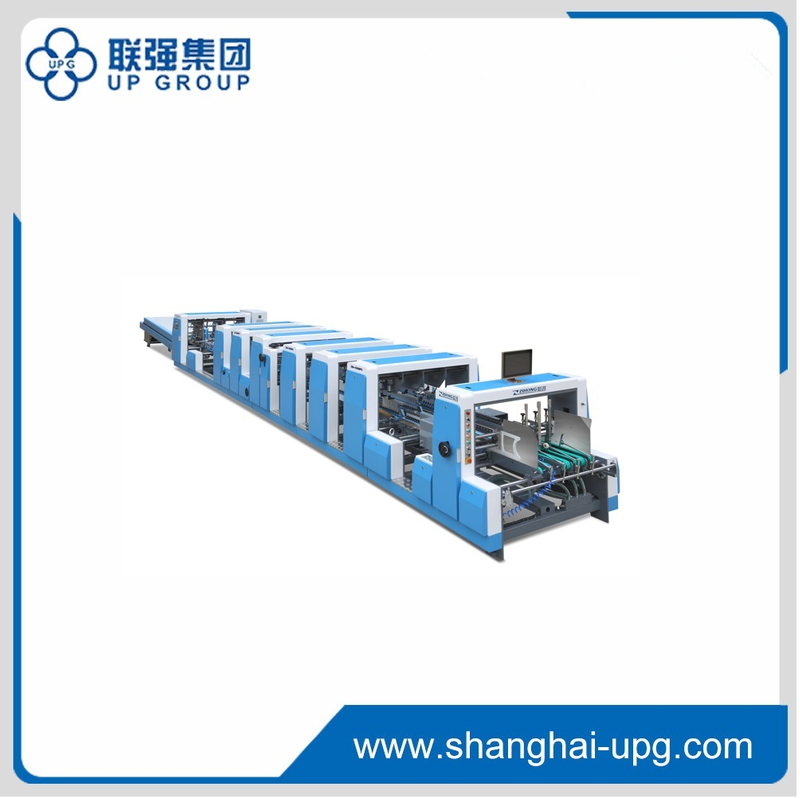

1050-Straight line-lock-bottom-4-6corner function
Availability: | |
---|---|
Quantity: | |
PDF Export | |
LQ-ZH-M1050
UPG
● Friction feeder. Independently driven by inverter.
● Adjustable electronic pile vibrator.
● Lateral feed gates fully adjustable to the width of the blank.
● Independent section that registers the blank to one side ensuring a perfect parallelism before entering the pre-folding or gluing sections.
● Possibility to register on any side of the machine.
● The pre-fold section has the advantage to make the box more plain and easy to open,even in some case the scoring is not very well.
● Left hand glue flap pre-folder up to 180º.
● 3rd crease pre-folding set up to 135º.
● 1st and 3rd crease openers.
● Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.
● Adjustable hook tension.
● Fast and easy setup
● Two lower (left and right) gluing tanks.
● Easy to remove and clean.
● Independently driven by motor.
● Smooth and accurate folding of 2nd and 4th creases.
● Easy accessibility.
● Friction feeder. Independently driven by inverter.
● Adjustable electronic pile vibrator.
● Lateral feed gates fully adjustable to the width of the blank.
● Independent section that registers the blank to one side ensuring a perfect parallelism before entering the pre-folding or gluing sections.
● Possibility to register on any side of the machine.
● The pre-fold section has the advantage to make the box more plain and easy to open,even in some case the scoring is not very well.
● Left hand glue flap pre-folder up to 180º.
● 3rd crease pre-folding set up to 135º.
● 1st and 3rd crease openers.
● Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.
● Adjustable hook tension.
● Fast and easy setup
● Two lower (left and right) gluing tanks.
● Easy to remove and clean.
● Independently driven by motor.
● Smooth and accurate folding of 2nd and 4th creases.
● Easy accessibility.
Model | LQZH-M1050 4/6 |
Suitable material | Card board210-850gsm , B/C/E/F flute corrugated board |
Max method | Automatic continuous feeding |
Max mechanical speed | 300m/min |
Overall dimension | 17000*1900*1650mm |
Weight | 11T |
Power consumption | 25KW,380V,50HZ |
Compressed air | 6 bar,10 m³/h,60 L |
Model | LQZH-M1050 4/6 |
Suitable material | Card board210-850gsm , B/C/E/F flute corrugated board |
Max method | Automatic continuous feeding |
Max mechanical speed | 300m/min |
Overall dimension | 17000*1900*1650mm |
Weight | 11T |
Power consumption | 25KW,380V,50HZ |
Compressed air | 6 bar,10 m³/h,60 L |
