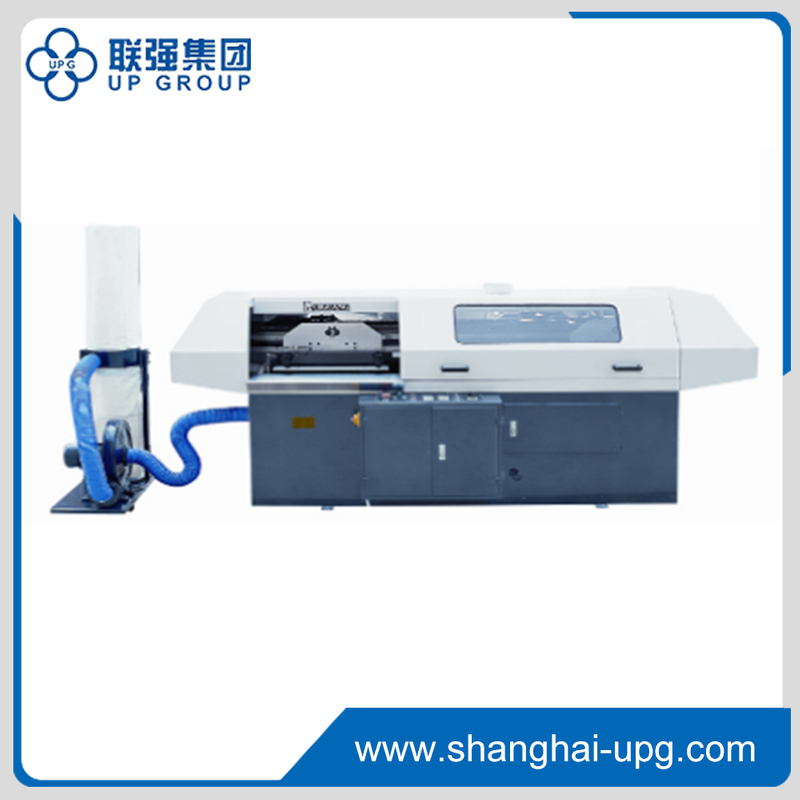

LQBB50/4D Elliptic Binding Machine

LQBB50/4D elliptic binding machine is an economic and environmental glue binder developed to replace the straight thread binder in accordance with real status of domestic and overseas printing and glue binding industries
Quantity:
  • LQBB50/4D
  • UPG

  1. 1. LQBB50/4D elliptic binding machine is an economic and environmental glue binder developed to replace the straight thread binder in accordance with real status of domestic and overseas printing and glue binding industries. It has 4 book clamps, can coat the primer twice, control front and back glue and make stepless speed changing, thus is the most advanced semi-automatic elliptic binder in China.
  2. 2. When it works, the book core is offered manually, then raking, grooving, side gluing, cover packing, cover impressing, finished-products output.
  3. 3. This machine adopts multi advanced techniques such as speed control by frequency variation, PID temperature control, photoelectric identification, etc.. It also adopts imported electric elements, which can enhance the dependability of the machine greatly. It is convenient to operate and adjust, and is perfected by the attached paper scraps suction device. This machine not only can be used as either thread or perfect binding, so it is an ideal equipment for perfect or thread book binding in various printing house and bindery.
Model LQBB50/4D
Maximum binding size 450x390mm
Minimum binding size 100x120mm
Thickness of book binding 3-50mm
Maximum binding speed 1500 books/hour
Number of clamp 4
Total power consumption 12kw
Overall dimensions of machine 2800×1200×1200mm(L×W×H)
Total weight of machine 1600kg
