LQ-CHD
UPG
Ultra-Low Ink Cost

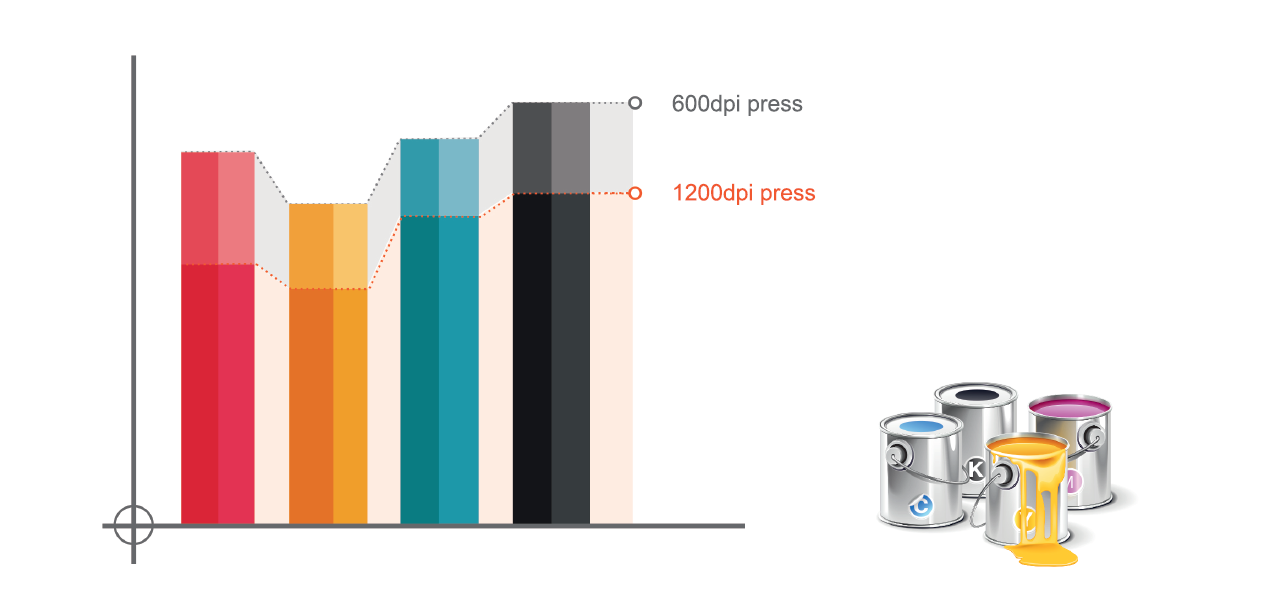

Improved Screening Technology
Beter Printing Quality with Less ink Amount. Compared with 600dpi color presses, the ink amount in HD presses can be saved by 30%-40% under the same printing conditions.
Founder also developed an ink calculator, which helps to estimate the ink consumption before printing.
Upgraded Ink Supply Technology
The latest sixth-generation circulating ink supply system greatly reduces nozzle clogging, which decreases ink wasted in cleaning maintenance by 50%.
Super Long Service Life
Casting Frame
Casting structure and advanced assembly technology applied on the base and wallboard of the mechanical platform ensure the structural stability and shock resistance of the whole machine in long-term operation, which helps to match the service life of offset presses.
The servo control system from well-known brands is accurate, stable, and durable, which is reliable to ensure safe and stable paper transmission, matched with paper breakage, double sheet and tail detection, etc.
Stable High Production Release
Minimize the Downtime Caused By Nozzle Clogging
Circulating ink supply technology with online detection greatly reduces the probability of nozzle clogging, and at the same time realizes the function of automatic white-line compensation, which protects the whole printing of one or more jobs, without stopping to maintain nozzles.
Efficient Paper Roll Replacement
Automatic adjustment of printing parameters after paper replacements is realized through online detection, which saves time for manually fine-tuning.
Multi-Technology Avoids Wrinkles And Dirt Of Large-Ink Jobs In High-Speed Production
The upgraded drying system highly improved the drying capacity of large-ink-amount jobs.
The page ink drop processing technology can reduce separately target ink for pages with super-large ink amounts, which realizes the high-quality printing of the whole job.
The Professional Inkjet lmposition Function For Continuous Paper
The function provides flexible and diverse imposition methods for books and periodicals printing, and at the same time supports perfect bound, saddle stitch, sewing, and other binding methods. That means one production line can be applied to different business types of customers to enhance production efficiency.
Powerful RIP Processing
The excellent RIP cluster control capability helps A4 color files be processed up to [3000 pagesl* per minute which is the bas is of full-speed printing. (*: Under the conditions required by Manual)
Founder Digital Printing Cutting System
Introduce the post-press technology of internationally famous manufacturers.
The cutting technology of internationally renowned manufacturers has been introduced and improved for domestic paper.
After the actual production of a large number of domestic black-and-white web machines, it is verified as a powerful weapon.
Technical Specifcations
| Printing mode | LQ-MD 4400CHD | LQ-MD 5600CHD | LQ-MD 6600CHD |
| Technical Specifcations | |||
| Printing type | 4-colors duplex | ||
| Resolution | 1200x1200dpi、1200x960dpi、1200x840dpi、1200x600dpi | ||
| Print speed | 150mmin Max* | ||
| Connect Cutter speed | 120nmin Max* | ||
| Registration accuracy | ±0.5mm(Front and back) | ||
| Printhead | Industrial Drop-on-demand Piezoele ctric | ||
| Ink droplet size | 1.5pl、3pl、5pl | ||
| Ink | Water-based pigment ink | ||
| Dry method | Infrared dryer (automatic adjustment on printing speed) | ||
| Digital front-end | Eagle JetinkjetTM imaging system (Windows Server based) | ||
| Paper | |||
| Max. media width | 440mm | 560mm | 660mm |
| Max. printing width | 440mm | 540mm | 650mm |
| Paper type | Uncoated paper,inkjet coated paper,newspaper#, matte coated paper# | ||
| Media thickness | 45 gsm -165 gsm | ||
| Max.roll diameter | 1270 mm | ||
| AC power | |||
| Mechanical platform | 380Vac120KW | ||
| Dryer system | 380Vac/69KWMax | 380Vac/90KWMax | 380Vac1105KWMax |
| Digital controller system | 220Vac/6KW | ||
| Operating environment | |||
| Temperature | 22.5-27.5℃,the best working temperature is 25℃ | ||
| Humidity | 40-70RH,no condensation, the best working humidity is 50-60%RH | ||
