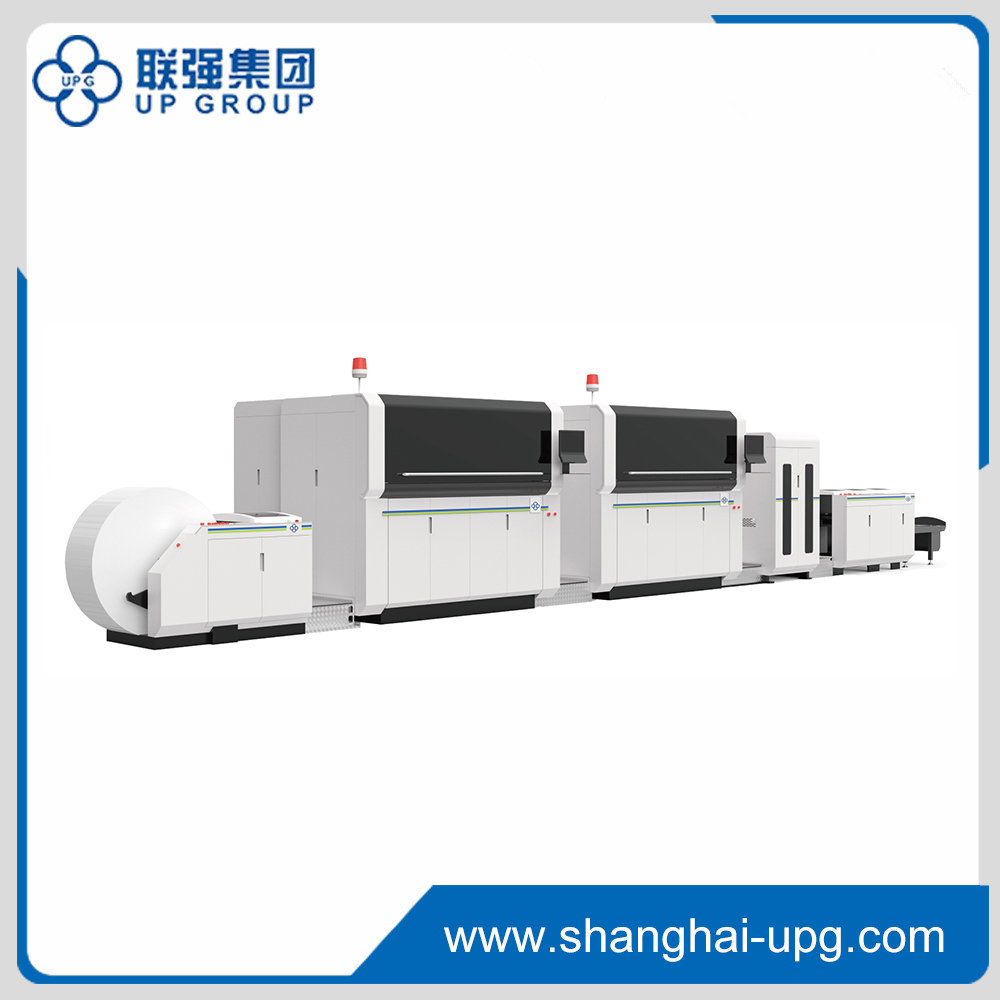

LQ-MD 440C Industrial Grade Inkjet Rotary Digital Printing Machine

-Intelligent digital process
-High quality
-Stable production capacity
-Low cost of use
-Low carbon and environmental protection

PDF Export

  • LQ-MD 440C

  • UPG


LQ-MD 440C is equipped with 600×1200dpi industrial-grade on-demand piezoelectric printhead. Through self-developed inkjet control technology, the printing image is clear and the color is rich and gorgeous, which is comparable to offset printing effect. Production speed up to 1010 A4/min which can meet multiple printing needs, independent research and development of water-based pigment ink, supporting a wide range of printing media, including coated paper, photo paper and other special materials, helping users to produce a variety of color books, manuals,instruction book and etc.

Features & Advantages
Software and hardware system with independent research and development
We adopt design philosophy of systems engineering, the automatic degree of machine is higher, the connectivity of whole machine is better, and it reduces the difficulties of operation greatly. The operated process is stable and efficient.

Inkjet system with own intellectual property rights
The inkjet system has complete data processing progress, with the industrial on-demand piezoelectric printheads, the maintenance is convenient,unique break prevention technology can do folio seamless printing. The printheads moisturize and clean automatically, it can print immediately after startup, and keep the whole progress no broken thread for ink supply.

Independent product ink
With independent research and development of the production of ink, rich layers, clear images, overly soft, with good printing adaptability, more with low power drying drying performance and paper adaptability.

Integrated cutting stack system
All equipment products are unified production, the overall connectivity is stronger, maximize the automation function of post-press equipment, automatic buffering, cutting, stacking, to achieve non-stop stacking, support dislocation stacking function, more labor saving, help the development of enterprises.

ModelLQ-MD 440C
PrintheadIndustrial grade eucalyptus needs piezoelectric printhead
Highest resolution 600x1200dpi
Ink typeWater-based pigment ink
Printing methodFour color duplex
Print speed1010 A4 sides/min at speed of 75 ml/min
Max paper width440mm
Paper range40g-200g
Paper typeOrdinary offset paper, digital offset paper,
inkjet coated paper, coated paper, photo paper
SoftwareWorkflow inkjet edition, support a variety of
international standard file formats
Paper feeding
Paper feeding and
winding mechanism
Automatic roll feeding
Maximum winding diameter1270mm
Maximum winding width440mm
Cutting line
Max speed100m/min
Paper gram40gsm-200gsm
Paper width140mm-440mm
Max paper receiving width440mm
Max paper receiving length450mm(paper receiving length
can be customized, such as:880mmetc)
Support various sizes
and specifications of cutting
For example, 16 in a longitudinal arrangement and two in a stack
Cutting book block
stacking sub-system
Including buffer, cutter, stack, conveyor and so on

LQ-MD 440C Application
