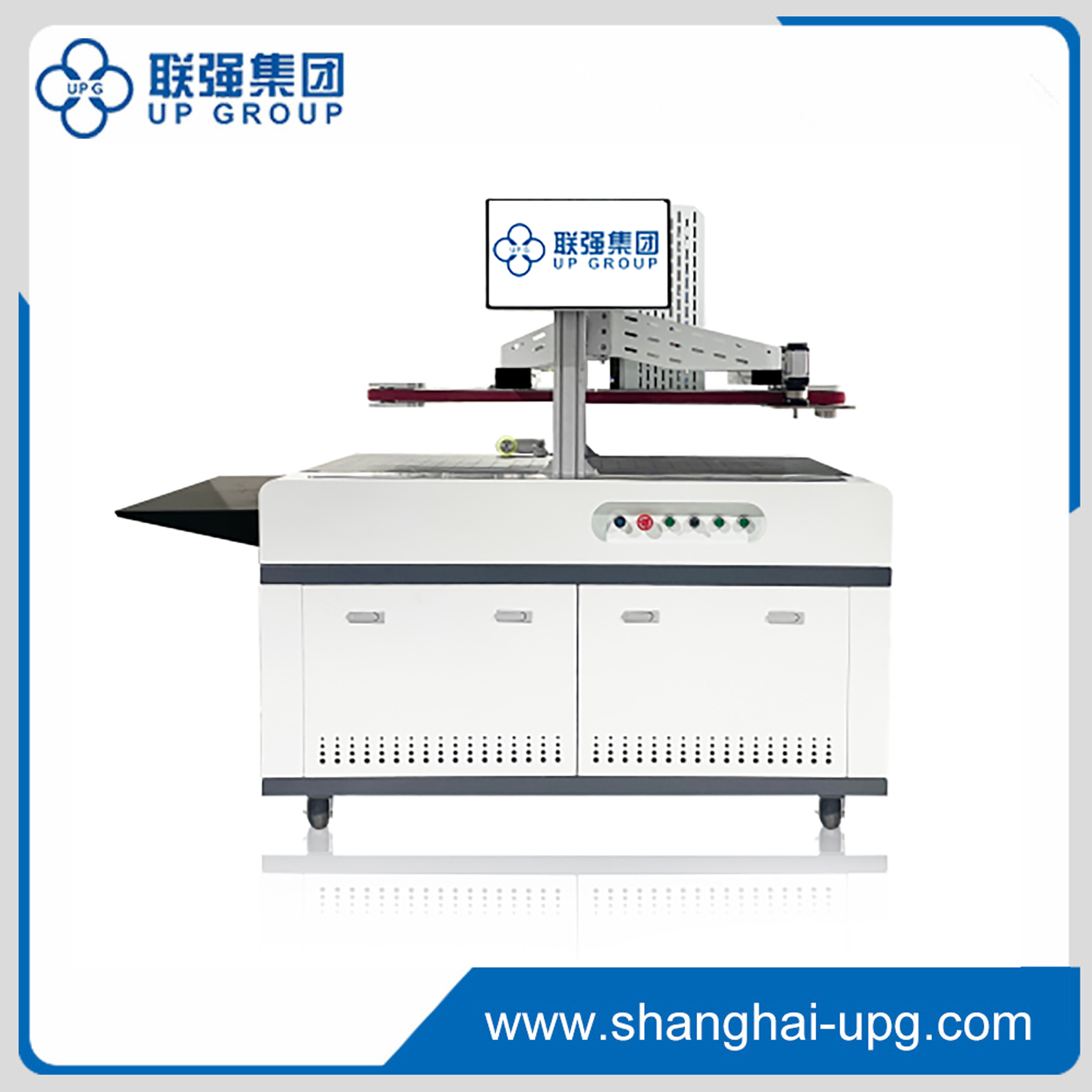

LQ-MD 210 Paper Edge Printer
UPG
Features
Dedicated collision avoidance device
Support a set of books edge printing
Fullservo electric regulation
Industrial grade imported HP print head
Smart Color Management System
In-house software One-click printing
Specially developed for book edge printing, it can print three sides of book opening: side, top and bottom. Depending on the thickness of the book, you can print three books at a time with the same drawing or one book with one drawing.
Features
Dedicated collision avoidance device
Support a set of books edge printing
Fullservo electric regulation
Industrial grade imported HP print head
Smart Color Management System
In-house software One-click printing
Specially developed for book edge printing, it can print three sides of book opening: side, top and bottom. Depending on the thickness of the book, you can print three books at a time with the same drawing or one book with one drawing.
Parameter | Value |
Resolution | 1200dpi |
Spray Printing Width | Width options: 33mm/160mm/210mm |
Feed Thickness (Book Width) | 70-300MM |
Feed Width (Book Thickness) | 0-230MM (customizable) |
Feed Length (Book Height) | 70-400MM |
Jet Printing Speed | 0-40m/min |
Support Color | CMYK (color) |
Working Ambient | Temperature 15-35°C, Humidity 20%-80% |
Input Power Supply | 220V 50Hz/60Hz |
Overall Size | 1500mm * 900mm * 1500mm |
Operating Weight (Net Weight) | 330KG |
