LQ-MD 440DTDL Mult Layer Ink Digital Rotary Printing Machine

Availability:
Quantity:
  • LQ-MD 440DTDL
  • UPG
  • LQ-MD 440DTDL

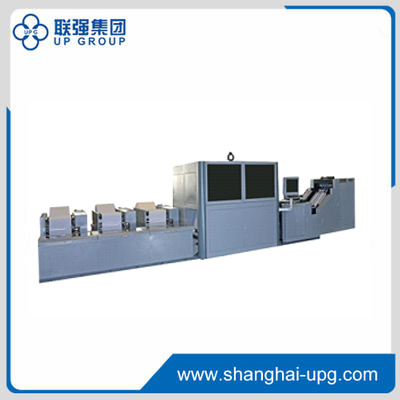

    LQ-MD 440DTDL Digital Rotary Printing press consists of three paper feeding units, three groups of ink jet printing units, cutting single unit, high-platform delivery unit.

CONFIGURATION:

  • The paper feeding unit is controlled by home-made automatic tension system, automatic deviation correction system and 10KG magnetic powder.

  • Ink-jet printing unit can be printed on single-ply paper, and printed in three-ply or two-ply two-color r (black picture and text, red number) products, printing unit and slitting processing unit host, the three printing units are detailed in the “Three-joint printing configuration”.

  • The cutting and cutting unit and the high-platform

  • delivery unit adopt the traditional rotary machine mode and linkage with the printing unit.

  • Spray drying adopts hot air drying system, oven temperature can be automatically adjusted.


Feed Section: Maximum width of Web

460mm

Maximum diameter of paper roll

1270mm

Paper weight

40-120g/m2

Maximum print width

430mm

Mandrel diameter of web paper

76mm

Maximum mechanical speed

100m/min

Maximum printing speed

80m/min

Machine Size

10×2.2×2m


Serial number

Content

Quantity

1

Ricoh nozzle

24

2

Ricoh sprinkler control panel

24

3

Ricoh sprinkler distributor

9

4

Black ink supply system

1set

5

Red Ink system

1set

6

440mm printing head

3set

7

440mm spray-on moisturizing

3set

8

Variable output software

1set

9

Computer

3

10

Encoders

4set

11

Color Eye

1

12

Electric Cabinet

1set
