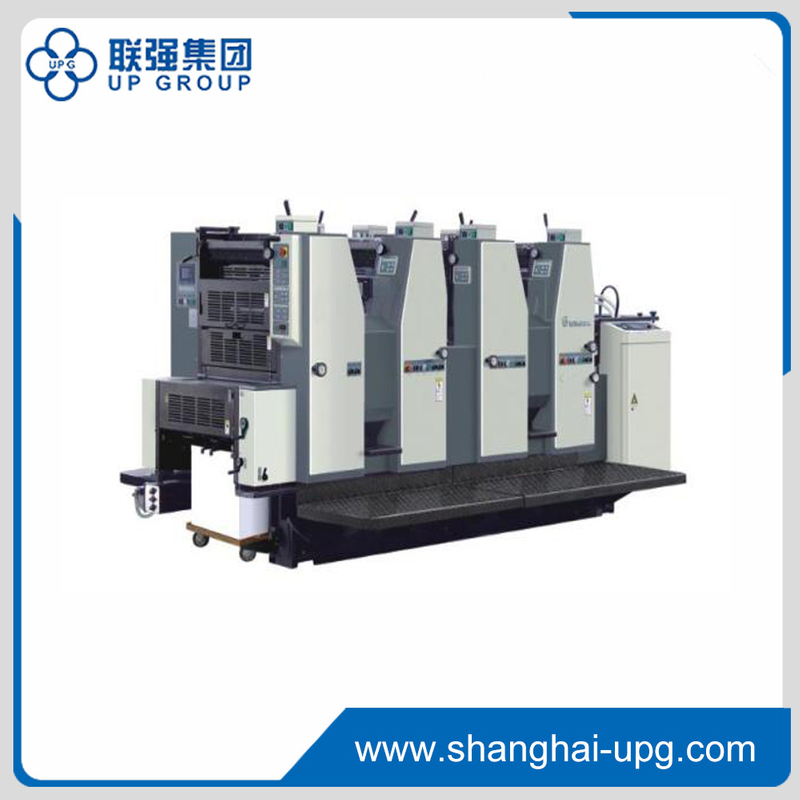

LQ-IN564
LQ
Max Paper Size | 560*400mm |
Min Paper Size | 200*155mm |
Paper thickness | 0.04-0.4mm |
Max Printing Area | 545*380mm |
Printing Speed | 3000-12000 sheet/hour |
Plate Size | 550*430mm |
Plate Thickness | 0.3mm |
Blanket Size | 568*450*1.9mm |
Number of rollers | 17 ink roller ; 4 water roller |
Gripper Margin | 9±1mm |
Registration System | Pull side guid(diagonal adjustment possible) |
Vertical image adjustment range | ±20mm |
Vertical image micro adjustment range | ±1mm |
Lateral image micro adjustment range | ±2mm |
Declining image micro adjustment range | ±1.5(upon Max. printing area) |
Oilling System | Centralized oilling system |
Power | 3 Phase 380V 50HZ |
Wattage | 13KW |
Motor Wattage | Main motor 11KW; Pump motor 0.75KW |
Machine Size | 4200*2300*1710mm |
Product Net. Weight | 8500kgs |
Feeding pile capacity | Height 600mm(23.62”) Weight 150kg |
Delivery pile capacity | Height 430mm(16.93”) Weight 120kg |
1. Heavy-duty mechanism structure. Cast iron pedestal, frame, cylinders etc, have the good intension and tenacity, ensuring high stability and good printing impression.
2. Underswing feeder, paper transferring structure is used high point gripper closed structure, insuring paper transferring system more stably.
3. Double diameter impression cylinder and triple diameter transferring cylinder are available, reducing the time of paper connection, improving register precision.
4. Plate cylinder and blanket cylinder go through with bearer, running stably, ensuring qualified printing image.
5. Plate adjustment function in vertical, lateral and cocking position. The minimum adjustment is based on 0.01mm, saving auxiliary adjustment time.
6. Special Design in paper feed head, paper board, front lay, gripper and other equipments insuring all kinds of thick and thin paper printing.
7. Paper fed continuously and stably, more suitable for thick and thin paper printing.
8. Vacuum sucker table, 3 sucker type paper feed cape insures all kinds of paper conveying.
9. Pneumatic control system, ensuring the press more stably.
10. High precision imported bearing, ensuring cylinder impression even in the high speed rotation.
11. Chromed cylinder, prolongs the operation life.
12. Automatic centralized oiling system, prolongs the working life.
13. Operators are under protection because of the installation of safety guard, adjustment door and protecting shield.
14. Semi-automatic plate loader and tightening equipment, make the plate loading more easy and convenient, shorten plate changing time, improving working efficiency.
15. Blower sucker and suction wheel are available in paper delivery section, insuring the paper delivery both in high and low rotation.
16. Alcohol dampening solution, continuous water feed, insuring water balance during printing.
17. Automatic water volume tracking device, the water volume could be changed according to the running speed of the machine after the water volume fixed.
18. Remote ink control system (optional)
19. PLC device and touch-screen operating.
Max Paper Size | 560*400mm |
Min Paper Size | 200*155mm |
Paper thickness | 0.04-0.4mm |
Max Printing Area | 545*380mm |
Printing Speed | 3000-12000 sheet/hour |
Plate Size | 550*430mm |
Plate Thickness | 0.3mm |
Blanket Size | 568*450*1.9mm |
Number of rollers | 17 ink roller ; 4 water roller |
Gripper Margin | 9±1mm |
Registration System | Pull side guid(diagonal adjustment possible) |
Vertical image adjustment range | ±20mm |
Vertical image micro adjustment range | ±1mm |
Lateral image micro adjustment range | ±2mm |
Declining image micro adjustment range | ±1.5(upon Max. printing area) |
Oilling System | Centralized oilling system |
Power | 3 Phase 380V 50HZ |
Wattage | 13KW |
Motor Wattage | Main motor 11KW; Pump motor 0.75KW |
Machine Size | 4200*2300*1710mm |
Product Net. Weight | 8500kgs |
Feeding pile capacity | Height 600mm(23.62”) Weight 150kg |
Delivery pile capacity | Height 430mm(16.93”) Weight 120kg |
1. Heavy-duty mechanism structure. Cast iron pedestal, frame, cylinders etc, have the good intension and tenacity, ensuring high stability and good printing impression.
2. Underswing feeder, paper transferring structure is used high point gripper closed structure, insuring paper transferring system more stably.
3. Double diameter impression cylinder and triple diameter transferring cylinder are available, reducing the time of paper connection, improving register precision.
4. Plate cylinder and blanket cylinder go through with bearer, running stably, ensuring qualified printing image.
5. Plate adjustment function in vertical, lateral and cocking position. The minimum adjustment is based on 0.01mm, saving auxiliary adjustment time.
6. Special Design in paper feed head, paper board, front lay, gripper and other equipments insuring all kinds of thick and thin paper printing.
7. Paper fed continuously and stably, more suitable for thick and thin paper printing.
8. Vacuum sucker table, 3 sucker type paper feed cape insures all kinds of paper conveying.
9. Pneumatic control system, ensuring the press more stably.
10. High precision imported bearing, ensuring cylinder impression even in the high speed rotation.
11. Chromed cylinder, prolongs the operation life.
12. Automatic centralized oiling system, prolongs the working life.
13. Operators are under protection because of the installation of safety guard, adjustment door and protecting shield.
14. Semi-automatic plate loader and tightening equipment, make the plate loading more easy and convenient, shorten plate changing time, improving working efficiency.
15. Blower sucker and suction wheel are available in paper delivery section, insuring the paper delivery both in high and low rotation.
16. Alcohol dampening solution, continuous water feed, insuring water balance during printing.
17. Automatic water volume tracking device, the water volume could be changed according to the running speed of the machine after the water volume fixed.
18. Remote ink control system (optional)
19. PLC device and touch-screen operating.
